DIY Laser Cutter for PCB Stencils


Are you sick and tired of using a tooth pick to apply solder paste? Are you still using through hole components because you don’t want to deal with soldering surface mount devices (SMD)? If so, this post provides you with guidelines for building your very own laser cutter for cutting PCB stencils. With a total cost of approximately $200 (it can be significantly less if you already have parts laying around), this project can pay for itself very quickly. While you can get “low cost” stencils for your PCBs, they still can be quite expensive if you are only creating one or two boards.

The laser cutter can cut very accurate stencils from adhesive backed black vinyl sheets (on Amazon) for ICs with a pitch of 0.5mm (SON-10) and 0402 resistors (and possibly even smaller parts). These stencils are disposable and so cheap that you do not have to worry about using your stencils on one or two PCBs.

Completed Laser Cutter

It gets better. You can use your RepRap as a laser cutter. All you need is a laser, a laser driver circuit board, and updated firmware (see below). While I built my laser cutter to be a laser cutter and not a 3D printer, I still used the RAMPS for the electronics even though it was built for the RepRap.

Before going onto how I built the laser cutter, I want to give you a quick overview of the design flow once everything is up and running:

  • First, I create a circuit board and order it from either Seeedstudio or OSHPark. Eventually, I will be using HackEDA for my schematic designs (go check them out!).
  • Next I make sure I have all the components I need. I personally prefer ordering from Mouser.
  • Once the boards arrive, I export the gerber files for the stencils from Eagle CAD using a simple CAM processor.
  • I then run a custom Python script which reads a gerber file and outputs a G-code file that the RAMPS electronics can understand.
  • Using pronterface (a RepRap interface software), I control the laser via G-code creating the stencil
  • A few minutes later, a perfect stencil has been created!
  • Using a credit card or razor blade I apply solder paste to the board.
  • I then manually place the parts using tweezers (sadly I do not have a pick and place machine…. yet).
  • Finally, I carefully place the populated board in my toaster oven reflow oven.
  • Approximately 5 minutes later, a perfectly soldered surface mount PCB is ready to be tested!

It has literally never been easier to build a custom circuit board. One of the best parts of this project is that most of the software needed was already written. This makes it VERY easy get going once the build is complete. Never reinvent the wheel if you can help it! That being said, you can buy a cutter/plotter for $250 on Amazon and make stencils that way. I believe that I will be able to achieve significantly higher accuracy with no software magic using my custom laser cutter. This is a much “simpler” alternative that may not provide as good results for approximately the same price.


The Build

While I can give you a full parts list, I do not believe that it is necessary. I built my frame out of birch. In hindsight, I should have used a different material such as plexiglass or metal. After I was finished, Adafruit started releasing parts which would have made the whole processes so much easier. Check out their CNC category and use them to build a two axis device. That is what I recommend if you are starting from scratch.

Smooth and Threaded Rods Aseembled

Where do you buy parts? Lowes, Home Depot, McMaster. It does not really matter, just make sure everything fits together nicely. For my device, I used 8mm smooth rods and 1/4″ threaded rods for both axis. I learned a lot from when I built a RepRap a few years ago (sadly, I sold it, otherwise it would have been the base for my laser cutter), which made the whole process a lot easier.

One trick which I will share with you, is what to use for the drive nut. Sure, you can spend tons of $$ for ACME rods and anti-backlash nuts, but I do not think that it is necessary. In Lowes (and I assume Home Depot), they have whats called a “Tee Nut”. I used the pronged version since I just hammered it into a piece of wood which was glued to each carriage. Get the longest one they have in stock that fits your threaded rod. The longer the nut is, the less backlash there will be. Spending less than $5 at Lowes sure beats spending over $50 on something you really don’t need.

Drive Nut (t-nut)

I highly recommend buying your smooth and threaded rods from McMaster Carr and spending a bit extra money to get higher quality ones. While you do not need the best of the best, having high quality smooth rods can make all the difference.

As for the bearing and motor couplers, eBay is your best friend. See the list above for which ones I used. Make sure you buy linear bearings and flexible motor couplers. Also, make sure that your smooth rods are perfectly aligned in your frame, otherwise you will have problems. At the end of the build, you should have something with at least two axis. While you can use pulley driven carriages, they will not provide as much accuracy as threaded rod driven carriages.

The best source (in my opinion) for motors and motor drivers is Pololu. You really can’t go wrong with them. See the links above for which steppers and stepper drivers I used. An additional way to save money, is to buy NEMA-14 motors rather than NEMA-17 motors. As we are not building a large 3D printer, the extra power is not necessary.

Laser and the Laser Driver

The biggest difference between this and a RepRap is the laser (obviously).  As such, you will need a laser and a circuit to drive the laser. The laser I used was the LPC-826, which can run up to 400-500mA and is widely available on eBay. I have found that you only need about 300mA (or even less) to make the perfect cut in black vinyl. This laser is available on eBay for about $10. If you have extra money in your budget, I highly recommend getting a blue laser or even a green laser rather than a red one. Why? Lasers with smaller wavelengths are better at cutting.

WARNING: IT IS VERY IMPORTANT THAT YOU ALSO BUY LASER SAFETY GOGGLES IF YOU USE A LASER IN ANY WAY SHAPE OR FORM. Looking at this laser can cause you to go BLIND. They don’t call it irreversible eye damage for no reason. Please, be safe. Do not attempt this project unless you know what you are doing, it can be very dangerous if you are not careful.

Once you have purchased your laser, be sure to pick up a focusable Aixiz module and glass lens. The glass lens will let you focus your laser better, creating thinner cuts. I have found that my stencil’s accuracy is not limited by the mechanical system or the electronics, but rather by the optics. My lens does not focus as well as it should which limits how thin my cut can be.

Laser Schematic

Laser Driver Schematic

This schematic is based off the LM317 and is in essence, a constant current source. The current output is controlled via a 100 ohm trimmer which has a 2.7 ohm resistor in series to limit the maximum current that can be sent to the laser diode. Additionally, the current source can be turned on and off via a MOSFET controlled by the Arduino. You really want to be careful with powering your laser diode as they can be blown very easily. The final circuit board is shown below. If there is enough interest, I will start selling the blank laser driver boards in the Hardware Breakout Store.

Laser Driver PCB

Electronics (RAMPS) and Firmware

As I previously mentioned, I use the RAMPS electronics which was originally created as an Arduino shield for the RepRap. Instead of using all three axis, I simply used the first two. Be sure to also hookup the endstops, I highly recommend that you use the mechanical ones rather than optical ones. I also did not populate any of the MOSFET drivers or thermistor parts. All in all, it was an easy and cheap build.

RAMPS Electronics

Partially assembled RAMPS electronics. This is all that is needed for the laser cutter.

To hook up the laser board, all that is needed is the AUX-2 header. This has the necessary connections needed to control the laser, an extra digital output (D42) and GND. Modifying the firmware proved to be just as simple as everything else. I simply needed to add a few lines of code for the laser to be supported via custom G-codes. I decided to use the code M52 to turn on the laser and M53 to turn off the laser. Place this code in the Sprinter.pde file at line 725:

case 52:  // M52 Turn on LASER
case 53:  // M53 Turn off LASER

Be sure to calibrate your firmware as well by inputting the correct steps/cm into the configuration file. Please note, there are a few other changes that need to be made to the project. See the files list at the bottom of this post to download the Arduino project (RAMPS Laser Firmware). One final tip, use Arduino 0022. For some reason I had trouble with the newer versions when using the RAMPS firmware.

Software – Eagle Output and G-code

Here comes the most interesting part of the whole project. The goal is to make it as easy as possible to print stencils, in essence, I wanted only one step between Eagle CAD and usable G-code. First I use a CAM process to create a gerber file from the cream layers directly in Eagle CAD, this is fairly standard. The top layer must be mirrored for it it to work correctly.

Eagle CAM Process

To create the G-code I found some Python code which can convert gerber files to G-code, pygerber2gcode. While attempting to modify this code to convert gcode which the RepRap firmware would understand, I decided to gut the whole code and rewrite some of it. All the difficult parts were already completed in pygerber2gcode; all the credit for reading the gerber files goes to author of this project.

The modified code will read in a gerber file and output gcode to the specified file, which the laser cutter can directly understand. I am not a Python expert, so the code leaves a lot to be desired. It works just fine for me though, and I believe that it is structured in a way that allows it to be easily modified. In the future, it would be interesting to calculate the optimal size of the shapes to account for the material and laser used.

My code has been uploaded to github. Please feel free to modify it as needed!


The most difficult part of this project was getting the laser cutter calibrated. This was difficult because you need to get the perfect balance between focus, power to the laser, and cutting speed to get the ideal cut. At first, I had the power turned up too high, this resulted in poor cuts due to the vinyl melting around the cut.

It turns out that the lens for my laser does not focus as well as I had hoped. This causes the laser to be wider than it is long, resulting in the cut being thicker in one direction than the other. Reducing the lasers power also helped minimize this issue. I ran quite a few tests to determine the best speed and laser current.

Calibration Stencils

By taking the stencils and putting them on a white piece of paper, it is easy to see how well each cut was made. Be sure to keep track of your settings!


Here are some of my results. I am VERY happy with how everything came out.

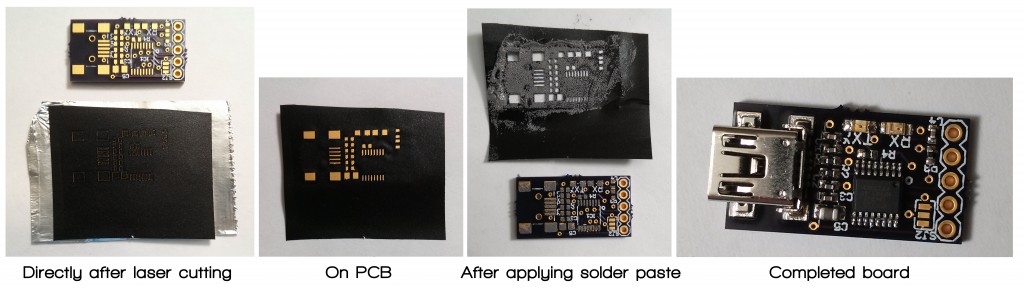

Collage of laser cutter results

This figure depicts the steps needed to fully assemble a board. No touch ups were needed. The board was soldered in my reflow oven toaster oven. Be sure to click on this picture and zoom in so that you can see everything clearly.

CC430 AP Example

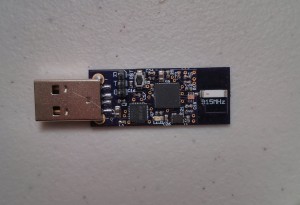

This is another board that used the laser cutter. It is a CC430 access point which uses the SON package from TI.

Another PCB Example

This is another example PCB that I soldered using a vinyl stencil from this laser cutter.

Concluding Remarks

I believe this to be a wildly successful project. While there is room for improvement, it works more than fine for my purposes. The most difficult part of the whole process is aligning the stencil on the circuit board. Check out github for all the files needed


  1. Hi. Great build! Are you able to cut anything else than vinyl with this laser?

    1. I have not tried cutting anything other than blue painters tape. The laser isn’t powerful enough to reliably cut white paper. I originally experimented with sticker paper, but realized that with a red laser, it wasn’t going to work. I’m pretty sure anything that absorbs enough red light that is thin enough can be cut.

  2. Cutting vinyl with a laser is a very bad thing since it may create chlorine gas. It is always best to check your materials with the copper wire test first.

    1. Rob, thanks for the warning. I keep the laser cutter near an open window and in the future I will be sure to create a fume extraction system for it with a few fans since this is not something I use all that often, only when I have a new board to solder.

  3. Awesome project, I’m ordering stuff right now! Which lens do you buy?

    1. I ordered the “635nm-660nm AR Coated Three Element Glass Lens”. The other options were actually not available last time I looked at that site. I actually am going to look into upgrading my lens since I do not think my existing one focuses as well as it should.

  4. Be careful with vinyl as it might release chlorine gas when being lasercut. Check out some more details over here:

    Thanks for sharing!

    1. Paul, thanks for the warning. I keep the laser cutter near an open window and in the future I will be sure to create a fume extraction system for it with a few fans since this is not something I use all that often, only when I have a new board to solder. Thanks for the link!

  5. […] love this — a laser cutter just powerful enough to cut vinyl, but that’s great for creating your own PCBs. Are you sick and tired of using a tooth pick to […]

  6. Have you tried a laser diode driver based on a voltage regulator with built-in Enable feature as an alternative to breaking the output circuit with a MOSFET? Here is one way to do it : looks like it should work with the 300mW red you’re using. I am just curious at to what happens if you accidentally ground the laser diode housing when the MOSFET is off … or even in general how the circuit behaves with both the output and adjust of the LM317 floated.
    Cool job of the cutter, btw! What’s the thickness of the vinyl sheet?

    P.S. apologies for the duplicate comment, posted it in the wrong place originally …

    1. That is a GREAT idea. If I ever built another system or decide to upgrade my driver module, I would definitely look into this. I know that TI has some amazing modules with an enable pin. I have actually done my best to keep the housing from getting accidentally grounded, I did not want the laser to turn on accidentally (which I expect is what would happen).

      The vinyl sheets are 3mil thick. This is typically what is recommended for stencils when soldering parts this small.

  7. Forgot to ask: has the flexibility/stretchability of the vinyl sheet been an issue or is it just not large enough of a piece to distort much?

    1. I am very careful with removing the stencil after it has been cut. When pulling the sheet from the backing where a fine pitched IC should go, there is some stretching if I don’t pull very slowly. Overall though, it has never been an issue for me.

  8. Do you leave the vinyl in place after applying paste? Does the vinyl go in the oven?

    Also, do you know if the vinyl would work in copper etchant? If so, you could start with just a copper-clad board and then etch the Cu , and then make another stencil for the paste. From copper-clad board to finished surface mount part…. Nice !

    Cool project!

    1. I think it’s a guarantee that the vinyl does *not* go into the oven. But I like your idea, if I can expand on it: mount the sticky-back vinyl on copper clad, laser-cut the outlines of the pads, then carefully peel the outer shapes up (they will later become the solder paste stencil). Etch the copper clad with the vinyl pads still on it, the rest dissolves away. Then somehow (acetone?) wipe off the vinyl pads from the now-ready PCB and mount the previously peeled off outer shapes (pads represented by the holes). Then apply the paste and the rest of the process is pretty much what NJC is already doing here. I wonder if it’ll work, NJC?

      1. I think it will work. Back in the day I used to use the iron on blue paper to etch PCBs, this should be able to replace the blue paper just fine! I’m going to order some boards and test it out soon. Thanks for the idea!

    2. The vinyl does not go in the oven. Once I apply the solder paste, I remove the vinyl (carefully so there is no adhesive residue left behind), and then I place the components with tweezers. To be honest, I never thought of using the vinyl for etching copper. It is a great idea! I will definitely experiment with it in the future. Thanks for the idea!

  9. Hi NJC,
    Fantastic project!!!
    Is possible cut other material?

    1. I have not tried cutting anything other than blue painters tape. The laser isn’t powerful enough to reliably cut white paper. I originally experimented with sticker paper, but realized that with a red laser, it wasn’t going to work. I’m pretty sure anything that absorbs enough red light that is thin enough can be cut.

  10. First off great project.

    An alternative that doesn’t put off toxic gases would be a vinyl cutter. You can get them as low as $200. Like this one.

  11. You guys are working way too hard here , just buy photo etch copper board , have the plotter draw on the board with a photo resist pen , then take the board , expose it to light and dip in etch , done.

  12. […] can also build a DIY laser cutter that can cut stencils. The tutorial is here. This entry was posted in Arduino, Manufacturing, Projects, wireless and tagged manufacturing, […]

  13. Great machine. I just got my laser installed on my CNC cutter.
    What speed are you cutting with?


    1. Thank you Henk! I am using the F20 speed on the firmware I mentioned in my post. I am not sure if this will be different for each set of electronics though. Getting the right speed for the laser you are using will take some time and lots of tests. If you are cutting vinyl (be sure to have good ventilation!), you want to cut only the vinyl and not the white paper backing. I had to play with the power on the laser and the speed in order to get the best results. If you have a higher quality lens, you most likely can up your laser power and cut faster, resulting in quicker stencils. Best of luck! Remember to be safe!

  14. OSH Stencils I gave up on my DIY efforts once these guys started up. For the price, they are hard to beat. $5 for a professional laser cut stencil, and they include a free plastic solder paste spreader and some stickers. They have other random goodies at times too. Great site and great service.

  15. […] wrote in to tell us about this “DIY Laser Cutter for PCB Steancils.” While a full BOM and step-by-step build instructions aren’t provided for the frame, pictures of […]

  16. Hey there! I’ve been following your website ffor a wile
    now and finally got the bravery tto go ahead and give youu
    a shout out from Huffman Texas! Just wanhted to say kee
    up the good work!
